制造材料/MANFACTURING MATERIAL

測試條件 Test Conditions所有特性測試，在環境溫度25°C±5°C條件下進行。All electrical tests are conducted at ambient temperature of 25±5°C.

09H RoHS系列產品用的相關標準是 DIN43560-1Applicable standards for 09H RoHS series areDIN43560-1.

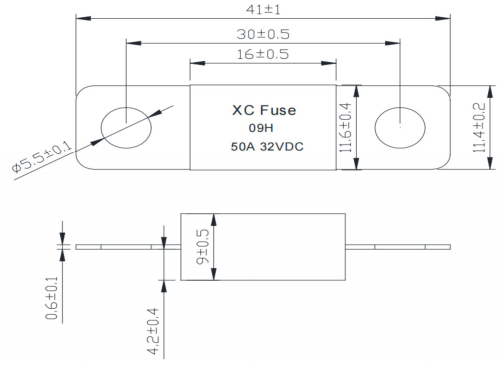

尺寸圖:單位Unit:mm

電氣特性

分?jǐn)嗄芰reaking Capacity熔斷體的分?jǐn)嗄芰?yīng)能達到下表規定的相應的各種安全認證的分?jǐn)嗄芰σ蟆１ｋU(xiǎn)絲分?jǐn)嚯娐泛螅ｋU(xiǎn)絲管不應破裂、銅帽飛脫、且銅帽兩端的絕緣電阻不小于0.1M2。The interrupting capacity should reach the interrupting rated current given in the following table.And after this test, there should be no damage of the fuse-tube or shattering of the caps. After thistest, the insulation resistance between the end caps shall be not less than 0.1MO.
